1500 LB Integral Flanged Ball Valve, Bolted Bonnet

Key Specifications / Features

Model No.: YV-BAV-08 Hits: 0

1500 LB Integral Flanged Ball Valve Manufacturer: 1500 LB In...

Class 1500 DN15 DN20 DN25 DN40 DN50 Bolted Bonnet

Request a quote
Previous: 150LB, 300LB, 600LB Integral Flanged Ball Valve
Next: API 6D Forged Steel Ball Valve, A105N, 1 Inch, 300LB, RF

Detail Infomation

1500 LB Integral Flanged Ball Valve, Bolted Bonnet

Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Ring joint type gasket available on request
Marking MSS SP25
Spiral wound gasket
Integral backseat
Integral body flanges
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C




1500 LB


 		 Full Port

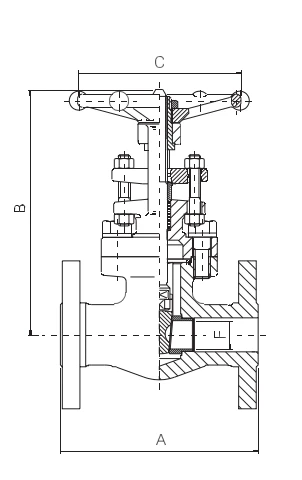

Size mm 15 20 25 40 50
A mm 216 229 254 305 368.5
B mm 215 250 270 350 445
C mm 97 138 138 172 234
F mm 14 18 24 36,6 48
Weight kg 8,2 13 16,2 29 55
