Key Specifications / Features
Model No.: YV-GTV-13 Hits: 0
150LB-600LB Integral Flanged Gate Valve Manufacturer: 150LB-...
Class 150 Class 300 Class 600 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch 2-1/2 Inch ASME B16.34
Request a quoteDetail Infomation
Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Integral body flanges
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

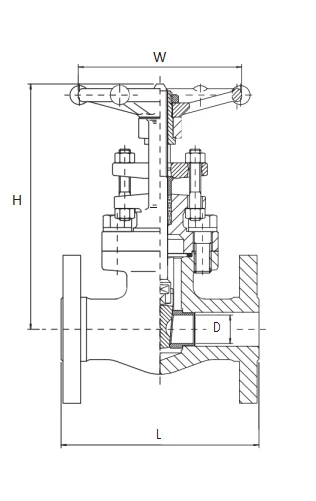

| Class | NPS(in) | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 |
| 150 | D |
10 |
13 |
19.1 |
21 |
31.8 |
38.1 |
48.5 |
| 300 | ||||||||
| 600 | ||||||||
| 150 | L |
108 | 117 | 127 | 140 | 165 | 203 | 216 |
| 300 | 152 | 178 | 203 | 216 | 229 | 267 | 292 | |
| 600 | 165 | 190 | 216 | 229 | 241 | 292 | 330 | |
| 150 | H |
158 |
163 |
193 |
250 |
250 |
291 |
350 |
| 300 | ||||||||
| 600 | ||||||||
| 150 | W |
100 |
100 |
125 |
160 |
160 |
180 |
240 |
| 300 | ||||||||
| 600 | ||||||||
| 150 | kg |
4.5 | 6.9 | 9.8 | 13.5 | 19.5 | 28.0 | 35.4 |
| 300 | 4.8 | 7.7 | 11.0 | 16.8 | 21.2 | 32.6 | 38.0 | |
| 600 | 5.6 | 7.8 | 12.5 | 17.0 | 23.5 | 38.8 | 42.6 |
