150LB-800LB Cryogenic Gate Valve, Full & Standard Port

Key Specifications / Features

Model No.: YV-GTV-12 Hits: 0

150LB-800LB Cryogenic Gate Valve Manufacturer: 150LB-800LB C...

Class 150 Class 300 Class 600 Class 800 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch BS 5352

Request a quote
Previous: 900LB-1500LB Gate Valve, Welded Bonnet, Full & Standard Port
Next: 2500LB Integral Flanged Gate Valve, Bolted Bonnet

Detail Infomation

150LB-800LB Cryogenic Gate Valve, Full & Standard Port

Design construction:
API 602, ASME B16.34, BS 5352, BS 6364
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available

Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

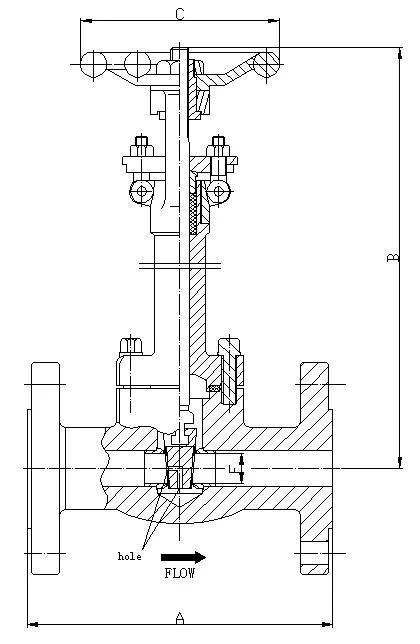

150-800 LB  NPS (in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5



L



 		 SW:NPT OR RC 92 111 120 120 140 178
CL150;CL300 140 152 165 178 190 216
CL600 165 190 216 229 241 292
PN1.6-4.0 130 150 160 180 200 250
PN6.4-10.0 170 190 210 230 250 250
H 333 360 407 475 475 551
W 125 125 160 160 180 200

KG
 		   7.1 9.4 13.5 15.0 17.8 28.0
CL300/CL600 7.0/8.0 9.4/11.1 12.5/13.4 19.8/21.5 20.1/22.6 24.0/27.0
