Key Specifications / Features

Model No.: YV-GTV-11 Hits: 0

900LB-1500LB Gate Valve Manufacturer: 900LB-1500LB Gate Valv...

Class 900 Class 1500 Welded Bonnet Full Port 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch

Request a quote

Detail Infomation

900LB-1500LB Gate Valve, Welded Bonnet, Full & Standard Port

Design Construction:
API, ASME B16.34, BS 5352
Testing according to api 598
Body Bonnet Weld to ASME IX
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integal Backseat
Marking MSS SP25
Outside Screw and Yoke(OS&Y)

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

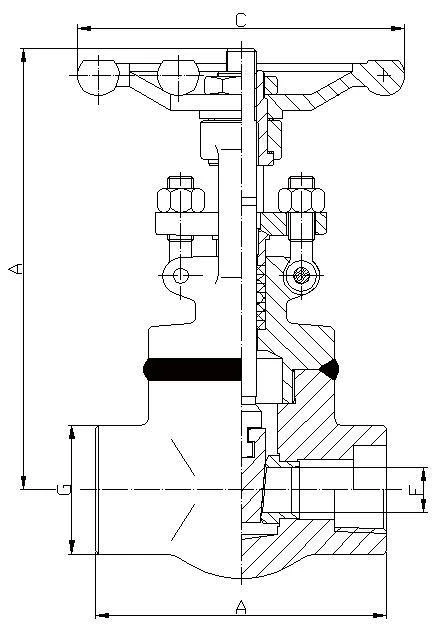

900LB-1500LB NPS (in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2
DN mm 8 10 15 20 25 32 40 50
F 7 10 13 18 24 29 36.5 46.5
A 102 102 102 111 120 120 140 178
H 166 166 169 193 230 246 283 330
C 120 120 120 125 160 160 180 200
kg 3.6 3.5 3.4 3.8 7.8 11.9 12.2 21.9
