Model No.: YV-BAV-07 Hits: 0

150LB, 300LB, 600LB Integral Flanged Ball Valve Manufacturer...

Class 150 Class 300 Class 600 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch ASME B16.34 BS 5352

Request a quote

Detail Infomation

150LB, 300LB, 600LB Integral Flanged Ball Valve

Design Construction:
API 602, ASME BI6.34, BS 5352
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Spiral-wound gasket
Integral backseat
Integral body flanges
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
-carbon steel class 150 285 psig@ 100°F 20 bar + 38°C
-carbon steel class 300 740 psig@ 100°F 51 bar + 38°C

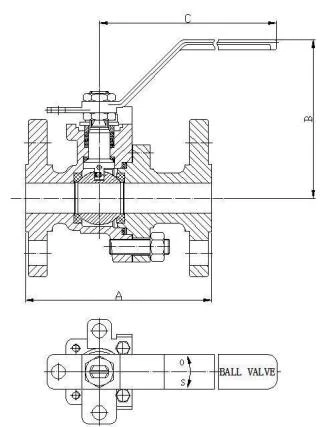

150LB
NPS
Dimensions(mm)
A B C
1/2 108 90 150
3/4 117 95 160
1 127 105 170
1-1/2 165 120 200
2 178 150 250




300LB




NPS
Dimensions(mm)
  A B C
1/2 140 90 150
3/4 152 95 160
1 165 105 170
1-1/2 190 120 200
2 216 150 250

600LB
NPS
Dimensions(mm)
A B C
1/2 165 90 150
3/4 190 95 160
1 216 105 170
1-1/2 241 120 200
2 292 150 250
