Key Specifications / Features

Model No.: YV-GTV-10 Hits: 0

150LB-800LB Gate Valve Manufacturer: 150LB-800LB Gate Valve,...

Class 150 Class 300 Class 800 Welded Bonnet Full Port 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch

Request a quote

Detail Infomation

150LB-800LB Gate Valve, Welded Bonnet, Full & Standard Port

Design Construction:
API, ASME B16.34, BS 5352
Testing according to api 598
Body Bonnet Weld to ASME IX
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integal Backseat
Marking MSS SP25
Outside Screw and Yoke(OS&Y)

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

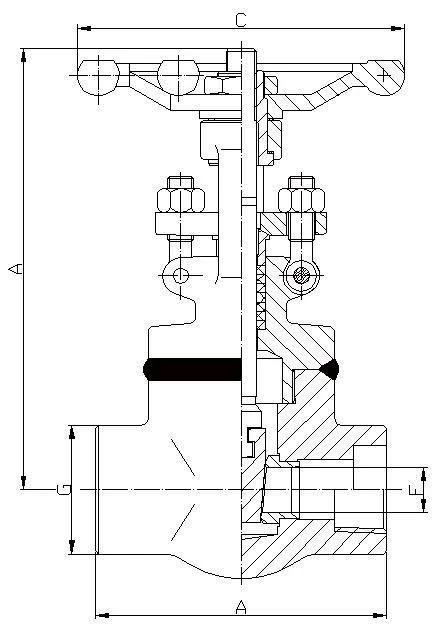

150LB-800LB DN R.P mm 8 10 15 20 25 32 40 50 -
(in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2 -
F.P mm - 8 10 15 20 25 32 40 50
(in) - 1/4 3/8 1/2 3/4 1 11/4 11/2 2
F R.P 7 10 10 13 18 24 29 36.5 -
F.P - 7 10 13 18 24 29 36.5 46.5
A R.P 79 79 79 92 111 120 120 140 -
F.P - 79 79 92 111 120 120 140 178
H R.P 149 151 151 158 185 239 243 279 -
F.P - 149 151 158 158 239 243 279 328
C R.P 100 100 100 100 125 160 160 180 -
F.P - 100 100 100 125 160 160 180 200
kg R.P 1.9 1.9 1.9 2.1 3.2 6.9 6.9 10.4 -
F.P - 1.9 1.9 2.1 3.2 6.9 6.9 10.4 15.8
