2500LB Self-Sealing Gate Valve Manufacturer: 2500LB Self-Sea...
Class 2500 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch
Request a quoteDetail Infomation
Design Construction:
ASME B16.34, BS 5352
Outside Screw and Yoke (OS&Y)
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integral backseat
Oval ring joint gasket
Self aligning two piece packing gland
Ratings standard class:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

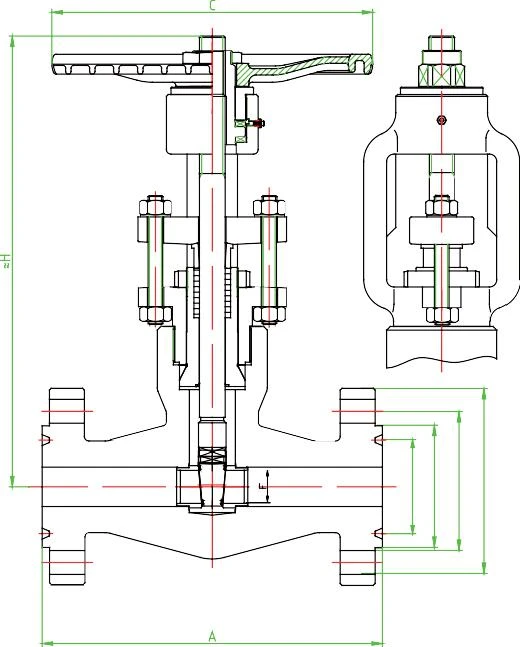

| DN | L | H | W | P | A | B | C | T | F | N- | kg | |
| （in) | ||||||||||||
| 1/2 | 15 | 264 | 333 | 180 | 42.9 | 65.1 | 89.0 | 133 | 30.5 | 6.4 | 4-23 | 18.0 |
| 3/4 | 20 | 273 | 333 | 180 | 50.8 | 73.0 | 95.2 | 140 | 32.0 | 6.4 | 4-23 | 20.5 |
| 1 | 25 | 308 | 333 | 180 | 60.3 | 82.5 | 107.9 | 159 | 35.0 | 6.4 | 4-26 | 23.0 |
| 11/4 | 32 | 352.2 | 383 | 200 | 72.2 | 101.6 | 130.2 | 184 | 38.5 | 7.93 | 4-29 | 42.6 |
| 11/2 | 40 | 387.2 | 420 | 200 | 82.6 | 114.0 | 146.0 | 203 | 44.5 | 7.93 | 4-32 | 45.0 |
| 2 | 50 | 454.2 | 524 | 300 | 101.6 | 133.0 | 171.4 | 235 | 51.0 | 7.93 | 8-29 | 60.5 |
