Key Specifications / Features

Model No.: YV-GTV-08 Hits: 0

900LB-1500LB Gate Valve Manufacturer: 900LB-1500LB Gate Valv...

Class 900 Class 1500 1/4 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Full Port Bolted Bonnet

Request a quote

Detail Infomation



Design Construction:
API 602, ASME B16.34, BS 5352
Testing according to API 598
Spiral-wound gasket
Integral backseat
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

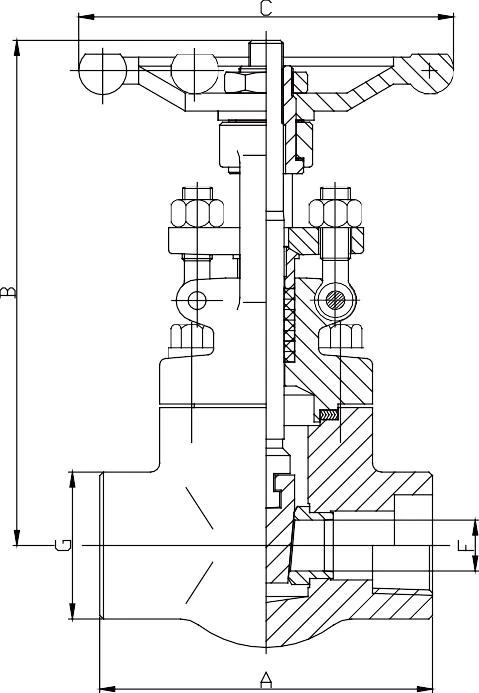

900LB-1500LB NPS (in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2
DN mm 8 10 15 20 25 32 40 50
F 7 10 13 18 24 29 36.5 46.5
A 102 102 102 111 120 120 140 178
B 166 166 169 193 230 246 283 330
W 120 120 120 125 160 160 180 200
kg 3.6 3.5 3.4 3.8 7.8 11.9 12.2 21.9
