150LB-800LB Gate Valve, Bolted Bonnet, Full & Standard Port

Design Construction:
API 602, ASME B16.34, BS 5352
Testing according to API 598
Spiral-wound gasket
Integral backseat
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

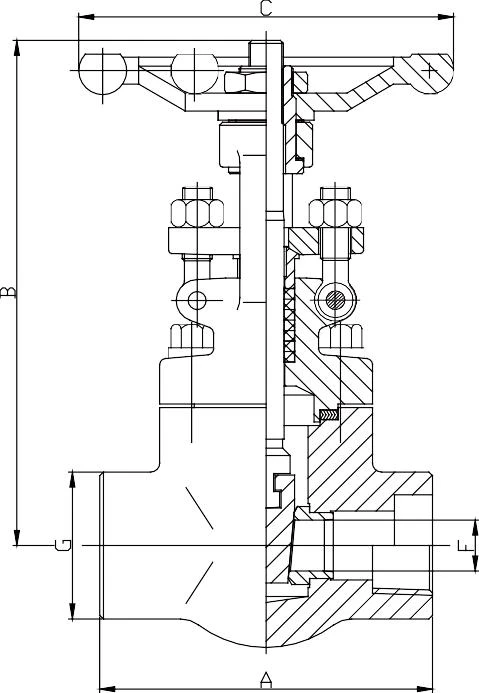

150LB-800LB

DN		 R.P mm 8 10 15 20 25 32 40 50 -
(in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2 -
F.P mm - 8 10 15 20 25 32 40 50
(in) - 1/4 3/8 1/2 3/4 1 11/4 11/2 2
F R.P 7 10 10 13 18 24 29 36.5 -
F.P - 7 10 13 18 24 29 36.5 46.5
A R.P 79 79 79 92 111 120 120 140 -
F.P - 79 79 92 111 120 120 140 178
H R.P 149 151 151 158 185 239 243 279 -
F.P - 149 151 158 158 239 243 279 328
C R.P 100 100 100 100 125 160 160 180 -
F.P - 100 100 100 125 160 160 180 200
kg R.P 1.9 1.9 1.9 2.1 3.2 6.9 6.9 10.4 -
F.P - 1.9 1.9 2.1 3.2 6.9 6.9 10.4 15.8
