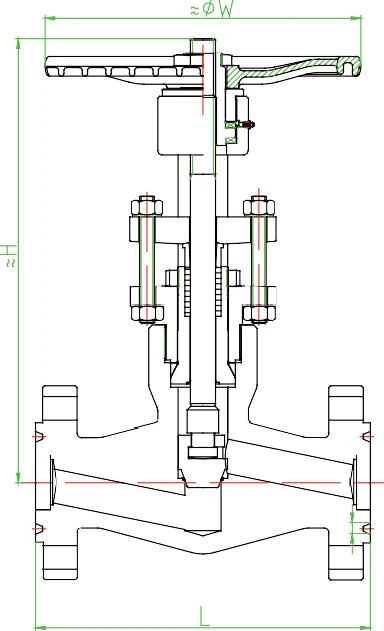

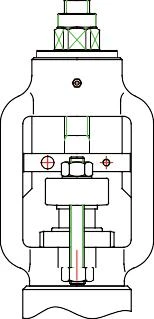

2500LB Integral Flanged Globe Valve, Bolted Bonnet

2500LB Integral Flanged Globe Valve, Bolted Bonnet

Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Integral backseat
Integral body flanges
Outside Screw and Yoke (OS&Y)
Loose Disc Stem Assembly
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Self aligning two piece packing gland

Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C





2500 LB



DN
L


H


W


P


A


B


C


T


F


n-


kg

inch mm
1/2 15 264 333 180 42.9 65.1 89.0 133 30.5 6.4 4-23 18.0
3/4 20 273 333 180 50.8 73.0 95.2 140 32.0 6.4 4-23 20.5
1 25 308 333 180 60.3 82.5 107.9 159 35.0 6.4 4-26 23.0
11/4 32 352.2 383 200 72.2 101.6 130.2 184 38.5 7.93 4-29 42.6
11/2 40 387.2 420 200 82.6 114.0 146.0 203 44.5 7.93 4-32 45.0
