900LB-1500LB Integral Flanged Globe Valve, Bolted Bonnet

Key Specifications / Features

Model No.: YV-GBV-15 Hits: 0

900LB-1500LB Integral Flanged Globe Valve Manufacturer: 900L...

Class 900 Class 1500 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch ASME B16.34 BS 5352 Bolted Bonnet

Request a quote
Previous: 800-1500LTD Globe Valve, Welded Bonnet, Full Port (Y Type)
Next: 2500LB Integral Flanged Globe Valve, Bolted Bonnet

Detail Infomation

900LB-1500LB Integral Flanged Globe Valve, Bolted Bonnet

Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Spiral wound gasket
Integral backseat
Integral body flanges
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Loose disc stem assembly
Self aligning two piece packing gland

Ratings:
- carbon steel class 150 285 psig @ 100°F 20 bar + 38°C
- carbon steel class 300 740 psig @ 100°F 51 bar + 38°C

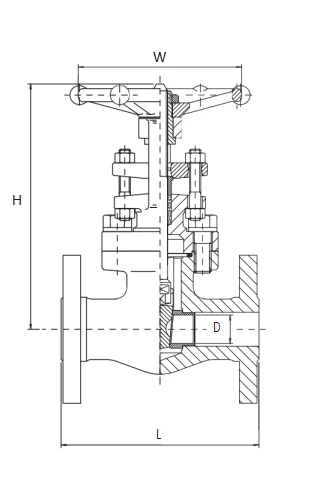

NPS (in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5

L		 900-1500 216 229 254 279 30.2 368
PN16MPa 170 190 210 230 260 300
H 207 240 258 290 337 354
W 100 125 160 160 180 240

kg		 B.B 7.4 12.5 16.0 17.2 23.0 29.8
W.B 8.0 13.2 17.4 19.0 24.5 31.0
