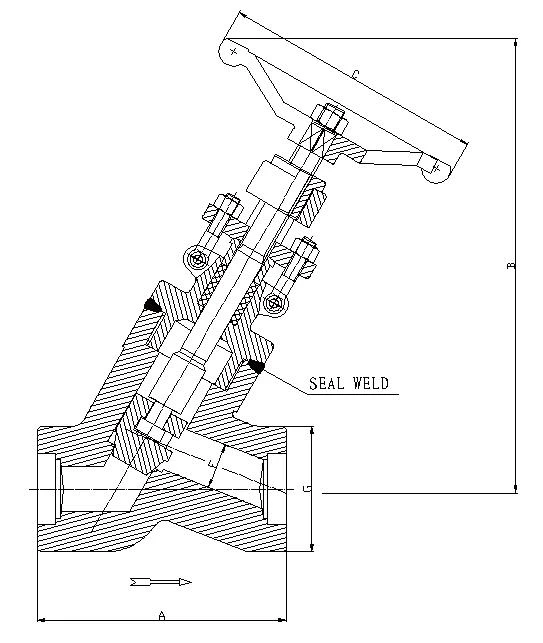

800-1500LTD Globe Valve, Welded Bonnet, Full Port (Y Type)

Design Construction:
ASME B16.34 Limited Class
Testing according to API 598
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integral backseat
Loose solid disc
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 2000 psig @ 100°F 138 bar + 38°C
- carbon steel class 1690 4225 psig @ 100°F 291 bar + 38°C

800-1500LB NPS (in) 1/2 3/4 1 11/4 11/2 2 21/2
DN mm 15 20 25 32 40 50 65
d(F.P) 13 18 24 29 36.5 46.5 64
L CL800/CL1500 108-130 108/130 130/180 160/190 160/190 190/220 220/260
H CL800/CL1500 B.B 175/255 175/225 233/274 281/307 281/307 310/356 340/472
CL800/CL1500 W.B 160/217 160/217 219/225 257/274 257/274 279/307 389/463
W CL800/CL1500 100/125 100/125 125/160 160/180 160/180 180/200 200/300
kg CL800/CL1500 B.B 2.6/3.8 2.3/4.2 5.5/7.8 15.0/17.2 17.4/17.6 27.0/29.1 36.8/40.4
CL800/CL1500 W.B 2.3/3.5 2.2/4.0 4.1/6.0 13.7/15.0 13.3/15.0 26.0/28.0 35.6/37.5
