Key Specifications / Features

Model No.: YV-GBV-12 Hits: 0

900LB-1500 LB Globe Valve Manufacturer: 900LB-1500 LB Globe ...

Class 900 Class 1500 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Welded Bonnet Full Port

Request a quote

Detail Infomation

900LB-1500 LB Globe Valve, Welded Bonnet Full & Standard Port

Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Body bonnet weld to ASMEIX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Integal Backseat
Loose Solid Disc
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

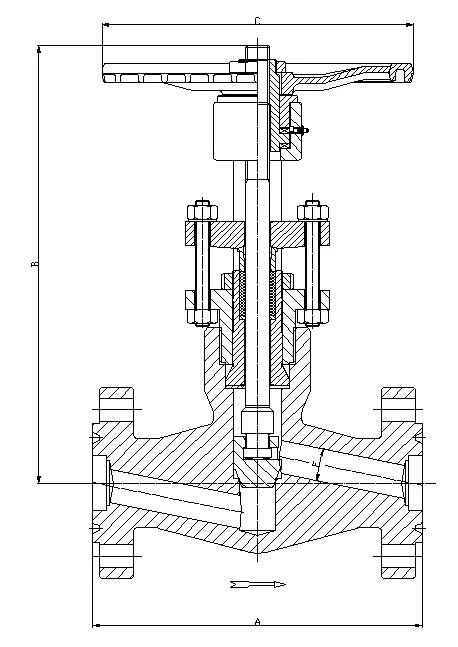

900 LB-1500 LB NPS (in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2
DN mm 8 10 15 20 25 32 40 50
F.B 7 10 13 18 24 29 36.5 46.5
A 111 111 111 130 152 172 220 236
B 207 207 207 240 258 290 337 354
C 100 100 100 125 160 160 180 240
kg 2.4 2.2 2.0 3.8 4.2 8.0 13.2 16.8
