Key Specifications / Features
Model No.: YV-GBV-10 Hits: 0
150LB-800 LB Globe Valve Manufacturer: 150LB-800 LB Globe Va...
Class 150 Class 300 Class 600 Class 800 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch
Request a quoteDetail Infomation
Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Body bonnet weld to ASMEIX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Integal backseat
Loose solid disc
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

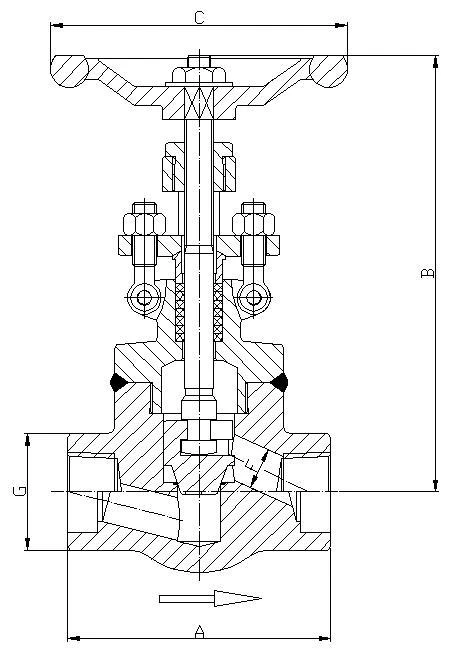

150LB-800LB |
DN |
R.P |
mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | - |
| (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | - | |||
| F.P |
mm | - | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | ||
| (in) | - | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |||
F |
R.B | 7 | 10 | 10 | 13 | 18 | 24 | 29 | 36.5 | - | ||
| F.B | - | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | |||
A |
R.B | 79 | 79 | 79 | 92 | 111 | 120 | 152 | 172 | - | ||
| F.B | - | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | |||
H |
R.B | 153 | 153 | 158 | 163 | 193 | 250 | 250 | 291 | - | ||
| F.B | - | 153 | 158 | 163 | 193 | 250 | 250 | 291 | 350 | |||
C |
R.B | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | - | ||
| F.B | - | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 240 | |||
kg |
R.B | 1.9 | 1.8 | 1.7 | 2.1 | 3.3 | 7.5 | 7.5 | 11.4 | - | ||
| F.B | - | 2.1 | 1.9 | 2.3 | 3.6 | 7.8 | 8.2 | 12.0 | 15.0 | |||
