Key Specifications / Features

Model No.: YV-GBV-10 Hits: 0

900 LB-1500 LB Globe Valve Manufacturer: 900 LB-1500 LB Glob...

Class 900 Class 1500 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch BS 5352 ASME B16.34

Request a quote

Detail Infomation

900 LB-1500 LB Globe Valve, Self-Seal, ASME B16.34, BS 5352

ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integral backseat
Loose solid disc
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings standard class:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

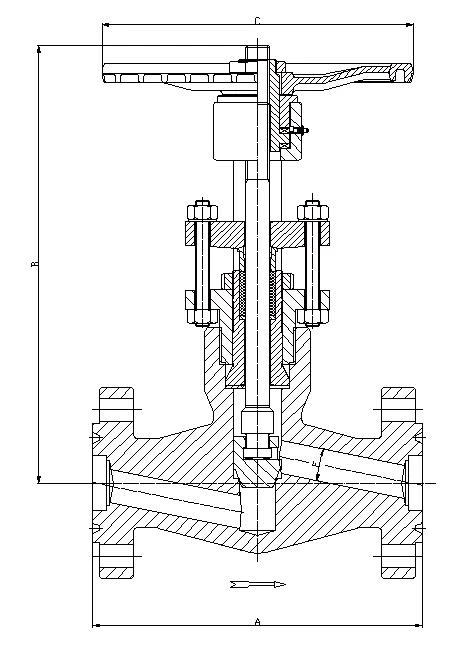

900 LB-1500 LB




NPS (in) 1/2 3/4 1 1/4 11/2 2
DN mm 15 20 25 32 40 50
F 13 18 24 29 36.5 46.5

A


 SW or NPT(Rc) 140 140 140 178 178 216

Flange

RJ 216 229 254 279 305 371.2
RN16.0 170 190 210 230 260 300
H 207 207 240 258 290 337
W 125 125 160 160 190 240

kg


SW or NPT 11.2 10.5 10.1 21.0 19.6 40.4
≤1500 RJ 15.5 16.9 18.3 25.5 34.3 52.8
RN16.0 MPa 14.3 15.2 17.0 22.6 30.0 48.1
