Key Specifications / Features

Model No.: YV-GBV-09 Hits: 0

900LB-1500LB Globe Valve Manufacturer: 900LB-1500LB Globe Va...

Class 900 Class 1500 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Bolted Bonnet Full Port

Request a quote

Detail Infomation

900LB-1500LB Globe Valve, Bolted Bonnet, Full & Standard Port

Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integal backseat
Loose solid disc
Marking MSS SP25
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

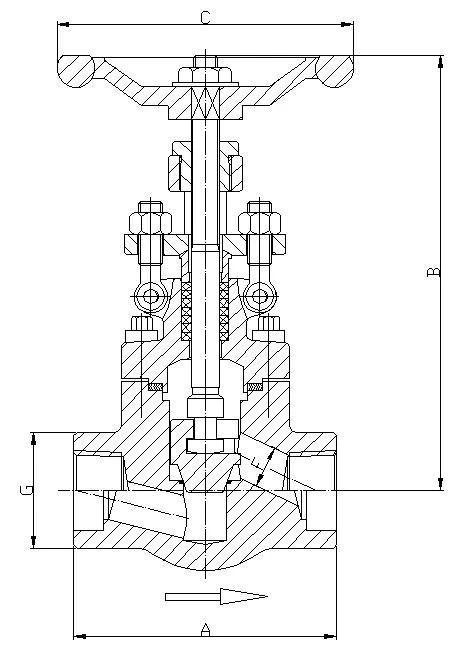

900 LB-1500 LB



NPS (in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2
DN mm 8 10 15 20 25 32 40 50
F 7 10 13 18 24 29 36.5 46.5
A 111 111 111 130 152 172 220 236
H 207 207 207 240 258 290 337 354
C 100 100 100 125 160 160 180 240
kg 2.4 2.2 2.0 3.8 4.2 8.0 13.2 16.8
