150LB-800LB Cryogenic Globe Valve, Bolted Bonnet

Key Specifications / Features

Model No.: YV-GBV-07 Hits: 0

150LB-800LB Cryogenic Globe Valve Manufacturer: 150LB-800LB ...

Class 150 Class 300 Class 600 Class 800 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Bolted Bonnet

Request a quote
Previous: BW Forged Y Globe Valve 3/8-2 Inch 150-3500LB API 602
Next: 150LB-800LB Globe Valve, Bolted Bonnet, Full & Standard Port

Detail Infomation

150LB-800LB Cryogenic Globe Valve, Bolted Bonnet

Design construction:
API 602, ASME B16.34, BS 5352, BS 6364
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available

Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

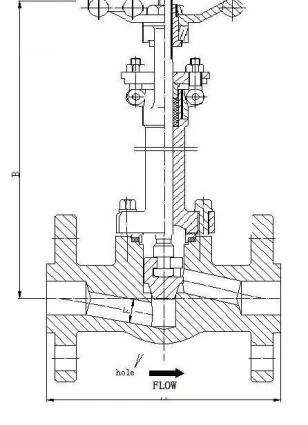

150LB-800LB NPS (in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5




L		 SW:NPT OR RC 92 111 120 172 172 200
CL150;CL300 152 178 203 216 229 267
CL600 165 190 216 229 241 292
PN1.6-4.0 130 150 160 190 200 230
PN6.4-10.0 170 190 210 230 260 300
H 339 370 410 474 474 546
W 125 125 160 180 180 200


KG		 SW:NPT OR RC 7.2 9.5 13.5 20.6 19.8 29.0
CLASS300 8.4 10.2 15.0 23.0 22.0 33.4
CLASS600 9.6 12.7 18.1 25.8 25 36
