2500LB Integral Flanged Check Valve, Self-Sealing

Key Specifications / Features

Model No.: YV-CKV-12 Hits: 0

2500LB Integral Flanged Check Valve Manufacturer: 2500LB Int...

Class 2500 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch DN15 DN20 DN25 DN40

Request a quote
Previous: 1500LB Integral Flanged Check Valve, Full Port, Bolt Bonnet
Next: API 602 Piston Check Valve, A105N, 1/2 Inch, 800LB, Trim 5

Detail Infomation

2500LB Integral Flanged Check Valve, Self-Sealing

Design Construction:
ASME B16.34, BS 5352
Full Port Type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Integral body flanges
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Spring available on request for Piston and Ball Check Valve

Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

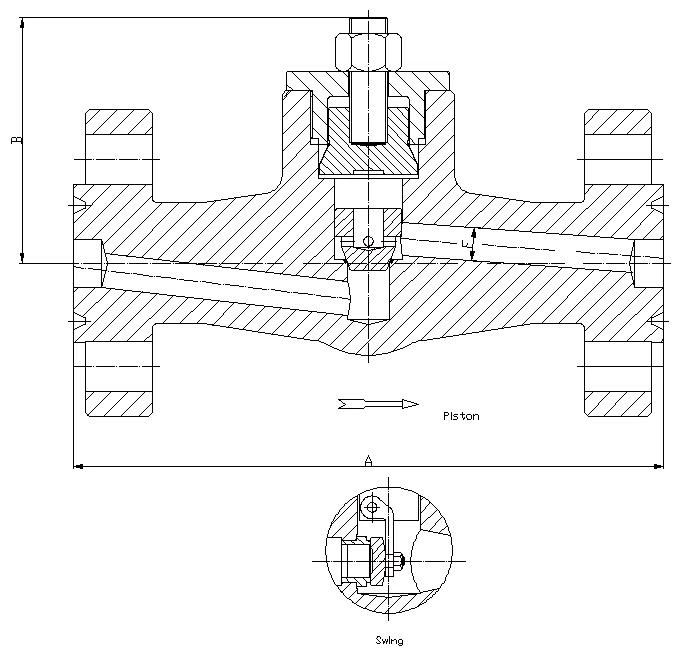

2500 LB










 		 NPS （in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5


L(RF)

 		 900; Class 1500 216 229 254 279 305 368
2000; Class 2500 264 273 308 349 384 451
PN16.0 MPa 170 190 210 230 260 300


H

 		 900; Class 1500 117.5 117.5 117.5 149 149 195
2000; Class 2500 125 125 125 166 166 210
PN16.0 MPa 117.5 117.5 117.5 149 149 195


kg

 		 900; Class 1500 10.5 11.9 13.9 26.9 25.1 32.0
2000; Class 2500 12.6 14.9 16.5 28.0 27.6 34.5
PN16.0 MPa 9.8 10.5 12.0 24.4 24.8 30.1
