Key Specifications / Features

Model No.: YV-CKV-11 Hits: 0

1500LB Integral Flanged Check Valve Manufacturer: 1500LB Int...

Class 1500 DN15 DN20 DN25 DN40 DN50 Full Port

Request a quote

Detail Infomation

1500LB Integral Flanged Check Valve, Full Port, Bolt Bonnet

Design Construction:
ASME B16.34, BS 5352
Full Port Type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Spiral wound gasket
Integral body flanges
Ring joint type gasket available on request
Spring available on request for Piston and Ball Check Valve

Ratings:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

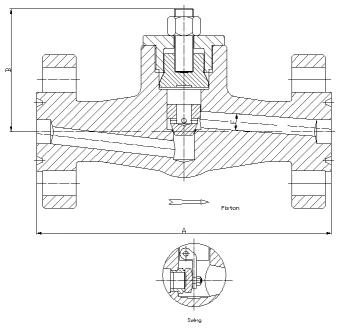

1500 LB



Full Port
Size mm 15 20 25 40 50
A mm 216 229 254 305 368,5
B mm 105 125 135 155 195
F Piston mm F Ball 12 14,5 19 31 40
F Swing mm 14 18 24 36,6 48
Weight kg 7,5 11,2 14,5 26,5 50
