Key Specifications / Features
Model No.: YV-CKV-10 Hits: 0
150LB-600LB Integral Flanged Check Valve Manufacturer: 150LB...
Class 150 Class 300 Class 600 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Bolted Bonnet Full Port
Request a quoteDetail Infomation
Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Spring available on request for Piston
Marking MSS SP25
Ball, Check Valve
Spiral wound gasket
Integral body flanges
Ratings:
- carbon steel class 150 285 psig @ 100°F 20 bar + 38°C
- carbon steel class 300 740 psig @ 100°F 51 bar + 38°C

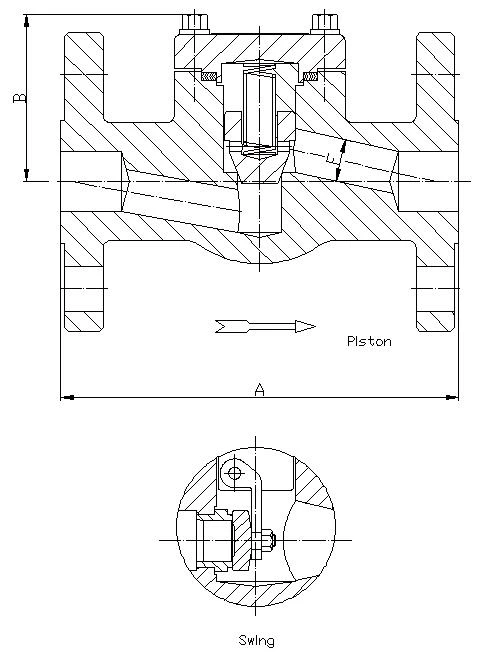

150LB-600LB |
NPS | （in) | 1/2 | 3/4 | 1 | 1/4 | 11/2 | 2 |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| D | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| L |
Class 150 | 105 | 117 | 127 | 140 | 165 | 203 | |
| Class 300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| Class 600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| PN 1.6-4.0 | 130 | 150 | 160 | 190 | 200 | 230 | ||
| PN 6.4-10.0 | 170 | 190 | 210 | 230 | 260 | 300 | ||
| H | Lift/Swing | 61/61 | 78/78 | 84/84 | 103/101 | 118/120 | 130/133 | |
| kg |
Class 150 | 3.4 | 4.4 | 8.2 | 8.9 | 12.0 | 14.3 | |
| Class 300 | 3.7 | 4.8 | 8.8 | 9.6 | 13.7 | 17.8 | ||
| Class 600 | 4.0 | 5.8 | 9.5 | 10.4 | 15.6 | 24.5 | ||
| PN 4.0 | 3.5 | 4.6 | 8.5 | 9.2 | 12.8 | 16.1 | ||
| PN 10.0 | 4.3 | 6.1 | 10.0 | 11.4 | 17.0 | 28.7 | ||
