Key Specifications / Features

Model No.: YV-CKV-09 Hits: 0

800-1500LB Check Valve Manufacturer: 800-1500LB Check Valve,...

Class 800 Class 900 Class 1500 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Welded Bonnet

Request a quote

Detail Infomation

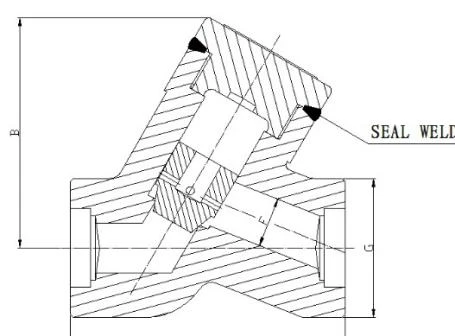

800-1500LB Check Valve, Welded Bonnet, Full Port (Y Type)

Design Construction:
ASME B16.34 Limited Class, BS 5352
Testing according to API 598
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spring on request only

Ratings:
- carbon steel class 800 2000 psig @ 100°F 138 bar + 38°C
- carbon steel class 1690 4225 psig @ 100°F 291 bar + 38°C

800-1500 LB NPS (in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2
DN mm 5 10 15 20 25 32 40 50
F 7 10 13 18 24 29 36.5 46.5
A class800 98 98 98 98 120 130 140 170
class1500 102 102 102 102 130 150 190 200
H class800 84 84 84 84 102 114 114 145
class1500 90 90 90 101 125 132 142 203
kg class800 3.0 2.8 2.7 3.7 6.5 9.0 10.1 11.0
class1500 3.2 3.1 3.0 4.1 7.2 11.0 12.0 13.8
