900-1500 LB Check Valve, Bolted Bonnet, Full & Standard Port

Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spiral-wound gasket
Spring on request only

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

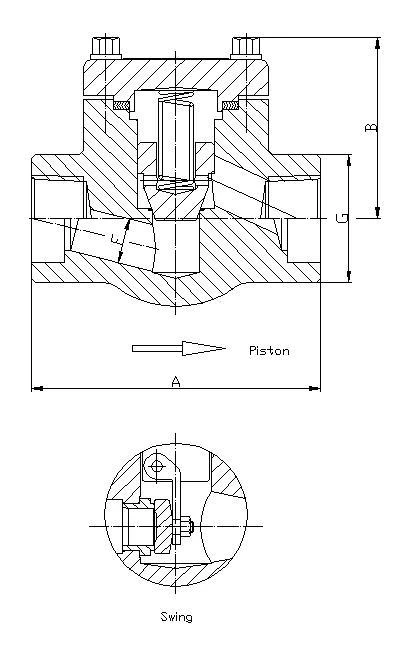

900-1500 LB




NPS (in) 1/2 3/4 1 11/4 11/2 2
DN
mm

15 20 25 32 40 50
F 13 18 24 29 36.5 46.5
A

lift 111 111 130 152 172 220
swing 111 111 120 140 140 162
H

lift 79 97 104 120 139 158
swing 79 97 115 133 149 166
kg

lift 3.4 4.8 6.9 10.7 8.8 12.3
swing 3.6 4.3 10.7 14.6 12.6 15.5
