Key Specifications / Features

Model No.: YV-CKV-07 Hits: 0

150-800 LB Check Valve Manufacturer: 150-800 LB Check Valve,...

Class 150 Class 300 Class 600 Class 800 1/4 Inch 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch

Request a quote

Detail Infomation

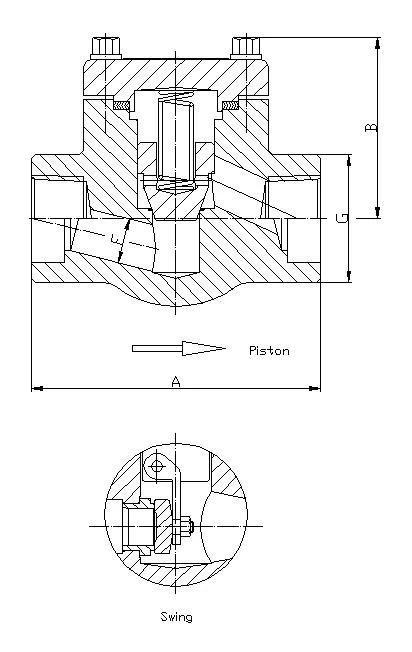

150-800-lb-check-valve-bolted-bonnet-full-standard-port

Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spiral-wound gasket
Spring on request only

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

150-800 LB
DN
R.P mm 8 10 15 20 25 32 40 50 -
(in) 1/4 3/8 1/2 3/4 1 11/4 11/2 2 -
F.P mm - 8 10 15 20 25 32 40 50
(in) - 1/4 3/8 1/2 3/4 1 11/4 11/2 2
F R.P 7 10 10 13 18 24 29 36.5 -
F.P - 7 10 13 18 24 29 36.5 46.5
A lift 79 79 79 92 111 120 152 172 200
swing 79 79 79 92 111 120 120 140 170
H lift 61 61 61 61 78 84 103 118 132
swing 61 61 61 61 78 84 101 120 133
kg lift 1.5 1.4 1.2 1.4 2.3 3.9 5.6 8.9 12.5
swing 1.3 1.2 1.0 1.1 1.9 3.4 4.5 7.3 10.0
