Key Specifications / Features

Model No.: YV-PVA-01 Hits: 0

China Pneumatic Valve Actuator Manufacturer offers 14 types ...

ISO 5211 Dimesions 2.5-8 Bar Pneumatic Valve Actuators

Request a quote
Previous: Valve Limited Switch
Next: None

Detail Infomation

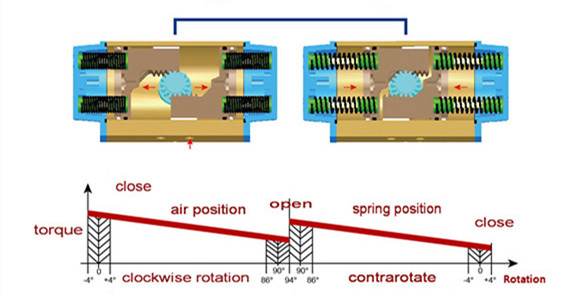

                                                                Pneumatic Valve Actuator Analysis diagram

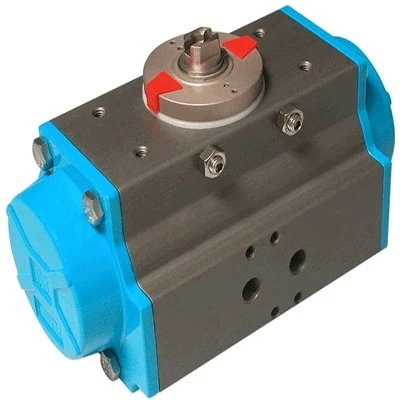

Pneumatic Valve Actuator Description
:
14 Types ( DA 32- DA 270 ).
Offering a broad range of pneumatic rack & pinion actuators.
The ports are NAMUR standard for easy solenoid valve connection.
ISO 5211 dimensions on all sizes.
All internal and external surfaces are anodized for corrosion resistance.
Actuator have a regulation range from-4° to +4°.
Shaft bearings isolate the pinion gear from the housing and support the shaft for high cycle.
Actuator can be lifted on many styles of quarter-turn valve, including ball, butterfly and plug and dampers.

Pneumatic Valve Actuator Operation:
Working pressure: 2.5 Bar – 8 Bar.
Working Temputure:
Standard range: -20℃ - +80℃.
Low temperature range: -40℃ - +80℃(HNBR).
High temperature range: -20℃ - +150℃(vition).
Factory lubricated for life under normal vorking.
Operating media – Dry or lubricated air, non-corrosive and inert gas or light hydraulic oil.
Angle of rotation: 0° to -90°± 4°.

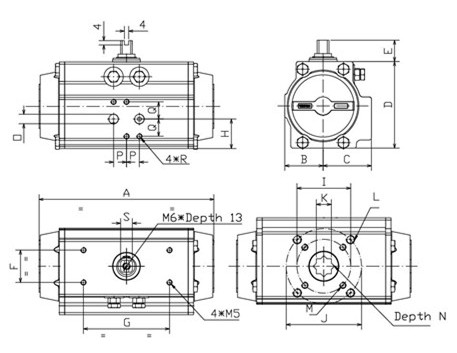

MOD. ISO5211 A B C D E F G H I J K L M N O
ISO7/1
P Q R S
50 FO3-FO5 138 30 41 69.5 20 30 80 26.5 36 50 11 M6*9 M5*7.5 12 1/8’’ 12 16 M5*7 11
63 FO5-FO7 162 35.5 45 80.5 20 30 80 27.5 50 70 14 M8*12 M6*8 16 1/8’’ 12 16 M5*7 11
75 FO5-FO7 208 42 52.5 97 20 30 80 35 50 70 17 M8*12 M6*8 19 1/8’’ 12 16 M5*7 17
88 FO5-FO7 245 49 60 115.5 20 30 80 46 50 70 17 M8*12 M6*8 19 1/8’’ 12 16 M5*7 17
100 FO7-FO10 266 55 68 121.5 20 30 80 50 70 102 17 M10*14 M8*12 20.5 1/4’’ 12 16 M5*7 17
115 FO7-FO10 310 64 73 141.5 30 30 130 50 70 102 22 M10*14 M8*12 24 1/4’’ 12 16 M5*7 17
125 FO7-FO10 340 68 80 153.5 30 30 130 61 70 102 22 M10*14 M10*15 24 1/4’’ 12 16 M5*7 22
145 FO10-FO12 401 78.5 90 179 30 30 130 73 102 125 27 M12*18 M10*15 29 1/4’’ 12 16 M5*7 22
160 FO10-FO12 430 86.5 100 192 30 30 130 83.5 102 125 27 M12*18 M16*25 29 1/4’’ 12 16 M5*7 27
180 F14 482 102 102 222 30 30 130 60 140 --- 36 --- M16*25 39 1/4’’ 12 16 M5*7 27
200 F14 532 112 112 244 30 30 130 63 140 --- 36 --- M20*30 39 1/4’’ 12 16 M5*7 30
240 F16 662 133 133 288 30 30 130 85 165 --- 46 --- M20*30 49 3/8’’ 20 22.5 M6*8 30
270 F16 730 153 153 323 30 30 130 106 165 --- 46 --- --- 49 1/2’’ 20 22.5 M6*8 30

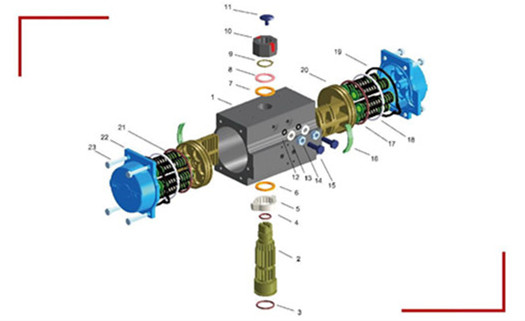

Pneumatic Valve Actuator Parts List

Item description material coating quantity(DR) quantity(SR)
1 body extruded aluminium anodic oxidation 1 1
2 pinion WCB nickel pLated 1 1
3  o-ring NBR70 ----- 1 1
6  pinion bearing POM ----- 1 1
5 position cam SS304 ----- 1 1
4 upper o ring NBR70 ----- 1 1
7  pinion bearing POM ----- 1 1
8  pinion ring SS304 ----- 1 1
9 jump ring SS304 ----- 1 1
10 indicator Nylon ----- 1 1
11 indicator screw Nylon+SS STEEL ----- 1 1
18 guide ring POM ----- 1 1
17 piston 0-ring NBR70 ----- 1 1
16 piston thrust block POM ----- 2 2
20 piston forget aluminium ----- 2 2
19 end cap  o-ring NBR70 ----- 2 2
22 end cap forget aluminum power painting 2 2
23 end cap screw SS304 ----- 2 2
15 regulation screw SS304 ---- 2 2
14 nut SS304 ----- 2 2
813 washer SS304 ----- 8 8
12 o ring NBR70 ----- 2 2
21 spring spring steel phosphating N/A Max.12

Spring Actuator

Spring actuator Table Summary
Model Group Spring Torque
(Nm)
Air Pressure(bar)
3 4 5 5.5 6 7 8
Pneumatic Torque(Nm)
90° 90° 90° 90° 90° 90° 90° 90°
SR50 3/3 4 5.8 5.9 4.1 9.3 7.4

12.6 10.8 14.2 12.4
4/4 5.4 7.8     7.9 5.5 11.2 8.8 12.9 10.5 14.6 12.1 17.9 15.5
5/5 6.7 9.7         9.9 6.9 11.5 8.5 13.2 10.2 16.5 13.5 19.8 16.8
6/6 8.1 11.7             10.2 6.6 11.9 8.2 15.2 11.6 18.5 14.9
SR63 3/3 7 10.1 10.9 7.5 16.8 13.3 22.7 19.2 25.6 22.1
4/4 9 13.5     14.6 10 20.4 15.8 23.4 18.7 26.3 21.7 32.2 27.5
5/5 11.1 16.9         18.2 12.4 21.1 15.4 24.1 18.3 29.9 24.2 35.8 30
6/6 13.3 20.2             18.9 12 21.9 14.9 27.7 20.8 33.6 26.7
SR75 3/3 13.2 20.8 21.6 14.1 33.3 25.8 44.9 37.4 50.7 43.2
4/4 17.7 27.7     28.8 18.8 40.5 30.5 46.3 36.3 52.1 42.1 63.7 53.7
5/5 22.1 34.6         36.1 23.6 41.9 29.4 47.7 35.2 59.3 46.8 71 58.5
6/6 26.5 41.5             37.5 22.4 43.3 28.3 54.9 39.9 66.5 51.5
SR88 3/3 22 34.7 32.9 20.3 51.2 38.6 69.5 56.9 78.7 66
4/4 29.3 46.2     43.9 27 62.2 45.3 71.3 54.5 80.5 63.6 98.8 81.9
5/5 36.7 57.8         54.8 33.8 63 42.9 73.1 52.1 91.5 70.4 109.8 88.7
6/6 44 69.3             56.7 31.4 65.8 40.5 84.1 58.8 102.4 77.1

Double Acting Torque Table Summary

Double Acting Torque Table Summary
Double Acting Torque
型号 Air Pressure(Bar)
2.5 3 4 5 5.5 6 7 8
Torque Values(N.M)
DA32 3.5 4.2 6 7.5 8 9 10 11.5
DA50 8.3 10 13.3 16.6 18.3 19.9 23.3 26.6
DA63 14.7 17.6 23.5 29.3 32 35.2 41 46.9
DA75 29 35 46.5 58.2 64 70 82 93
DA88 45.8 54.9 73.2 91.5 101 110 128 146
DA100 66 79.8 106 133 146 160 186 213
DA115 107 129 172 215 236 258 301 344
DA125 138 166 222 277 305 332 388 443
DA145 217 261 348 435 478 522 609 696
DA160 284 340 454 567 324 681 794 908
DA180 383 459 613 766 842 919 1072 1225
DA200 532 638 851 1064 1170 1276 1489 1702
DA240 1160 1392.5 1857 2321 2553 2785 3249 3713
DA270 1132 1958 2611 3264 3590 3916 4569 5222
